Analysis of transient mixing processes using Discrete Element Modeling

Rocky DEM is used to simulate mixing processes and establish an efficient optimization of mixers

Process requirements are defined in terms of mixing quality and throughput capacity. How do parameters, such as mixer geometry and speed, influence the mixing process? Such analyses are crucial in mechanical process engineering and particularly in the concrete industry, where Liebherr-Mischtechnik GmbH is one of the market leaders in mixing technology. Relying on CADFEM and Rocky DEM, Liebherr used the tool to simulate and evaluate transiently the mixing process, establishing an efficient optimization process for mixers.

In practice, process-related requirements are defined in terms of mixing quality and throughput capacity. The parameters affecting the mixing process are, for example, the type, geometry, and speed of the mixer. Here, the challenge is how to quantitatively record the influence of the parameters.

The mixing quality depends on the number of samples

CADFEM and Liebherr-Mischtechnik GmbH developed a numerical evaluation method based on Rocky DEM, which is used to simulate the mixing quality. The volume of the mixer is applied to a numerical evaluation grid in order to perform a statistical analysis. With an appropriate resolution of the evaluation grid, a statistically sufficient number of samples can be evaluated. Furthermore, insights can be obtained about the spatial distribution of the mixing quality in the mixer, and the temporal course of the mixing quality during the mixing process.

Total volume for determination of mixing quality

With Rocky, the mixing process is simulated and evaluated transiently, although premature statements based on visualizations from the post-processing should be avoided. The quantitative evaluation of the mixing quality mentioned above enables the behavioral evaluation of various mixers. However, a profound understanding of the physical processes is necessary to explain the results and to derive meaningful measures.

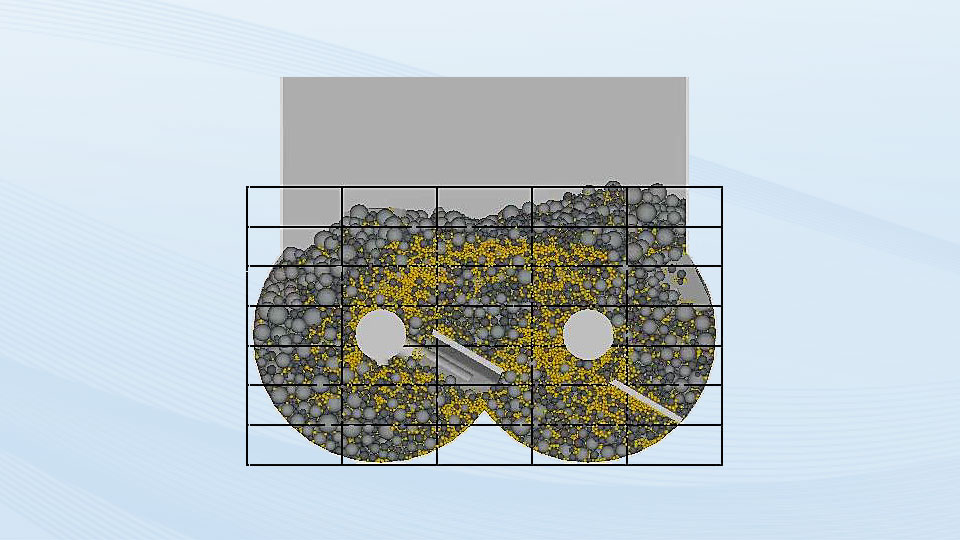

Grid of random samples on the mixer

Rocky enabled CADFEM and Liebherr-Mischtechnik GmbH to establish an efficient optimization process for mixers. This allows both the generation of new mixing processes and the optimization of existing ones. After the identification of the relevant parameters, they can be evaluated based on the simulated mixing quality. Finally, strategies for the selection of the optimum operating parameters can be derived.
